Standard Packaging Tofu Processing Equipment for Continuous Unmanned Production

Large Image : Standard Packaging Tofu Processing Equipment for Continuous Unmanned Production

Product Details:

Place of Origin:	Beijing, China
Brand Name:	Luoke

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$1,300,000.00/units >=1 units

Contact Now

Standard Packaging Tofu Processing Equipment for Continuous Unmanned Production

Description

Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops, Other	Showroom Location:	France, Spain, Malaysia, None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump	Condition:	New
Voltage:	220V/380V	Weight:	3500 KG
Warranty:	1 Year	Key Selling Points:	High Productivity
Product Name:	Tofu Production Line	Usage:	Tofu Bean Curd
Package Type::	Standard Export Wooden Case Or Carton Packaging	After-sales Service Provided:	Engineers Available To Service Machinery Overseas

Product Overview

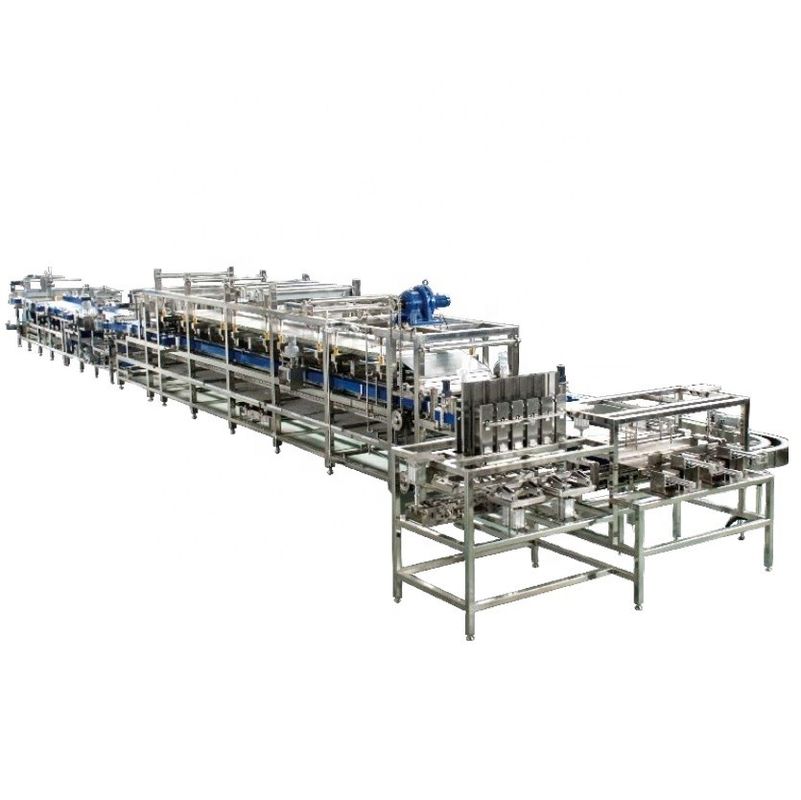

Tofu production line

SOYMILK PRODUCTION LINE WITH BOILED MIXTURE TECHNOLOGY

* Component: The boiled soymilk production line consists of automatic convey device for soaked beans, automatic grinding group, automatic continuous cooking machine, rotor pump, extruding machine, roller screen, soymilk tank, residue blowing machine and

automatic control cabinet.
* Function: It is used in the Automatic boiled soymilk production line. The process is as follow: pumping the soaked beans to the grinding machine which has the water gauge and beans quantitative instrument to control the soymilk concentration, then the rotor pump will take the raw mixture to the continuous cooking machine which can control the cooking temperature automatically, then the extruding machine will separate the mixture to soymilk and residue, then the soymilk will be filtered by roller screen and used to make soybean food, at last, the residue blowing machine will convey the residue to the residue warehouse. The whole production line is controlled by computer.

FULL AUTOMATIC TOFU MACHINE (NO MOULD AND NO CLOTH REQUIRED )

* Component: It consists of blending device for soymilk and coagulator, the tofu shaping device, tofu cutting device, conveyor, cleaning device, gearing and programming controller etc.
* Function: It is suitable for the bittern tofu production line. It can finish the operation automatically such as mixing the
soymilk and additive, coagulating in the cloth, squeezing the water without tofu mould, cleaning the cloth, cutting the tofu and conveying the tofu to packing machine. The full procedure is controlled by PLC.

FEATURES AT A GLANCE

Curds soymilk

Breaking device

Hygienic

Company Profile

Beijing Luoke Machinery Co., Ltd. was established in 1995. We have more than 200 skilled workers and a team of engineers, advanced production line, full-scale facilities, and one area with more than 30,000 square meters. Our company specializes in researching and manufacturing, marketing, making the overall design and providing the technical training for the soybean food processing factories. As one SINO-JAPANESE joint enterprise, we have accomplished some full automatic tofu production lines successfully and exported to European. The other main equipments include soymilk production line, Silken tofu production line and so on. Our company has got more than 80 national patents and CE certification. We welcome your inquiry and cooperation.

Our services

Certifications

FAQ

Question 1: Are you manufacturer? What are your advantages? Yes. We are manufacturer with more than 20 years' production experience. We provide customer high quality equipment machine products at very reasonable price. Question 2: Do you accept OEM, ODM order? Yes. We can customize machines according to customers special requirements. Question 3: What payment terms do you accept? TT, LC, etc., Question 4: Does your machine have warranty time? Yes. One Year. Question 5: What’s your Minimum Order Quantity? Any small order quantity is warmly welcomed. Question 6: What sea port do you ship at? Any port of China is OK.
